Feeding system
Home > Products > Poultry Production > Breeder Floor Rearing

Feeding System – Efficient, Durable, and Automated Feeding Solutions for Poultry

Big Herdsman’s Feeding System is designed to provide efficient, automated, and reliable poultry feeding solutions. Our galvanized silos ensure long-term durability and corrosion resistance, while the main feed line features high-quality imported augers, motors, and wear-resistant PVC feed pipes for smooth and consistent feed delivery. The 45 pan feeding line and chain feeding line are engineered for precision feeding, with adjustable lifting systems to optimize feed distribution for birds of different ages. With automated feeding, overload protection, and high-efficiency feeding capacity, this system minimizes waste, enhances poultry growth, and improves overall farm productivity.
Reliable eco-friendly efficient

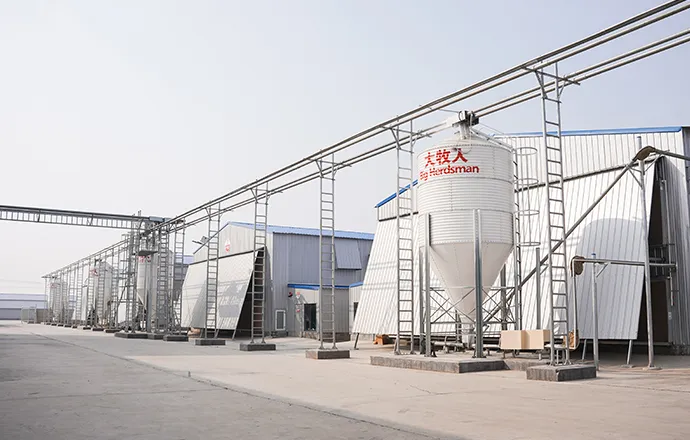

Feeding system-Silo
  • All standard parts of silo are galvanized, with strong corrosion resistance, and long service life of sealing gasket/sealing strip.
  • Standard ladder of silo is equipped with protective fence, which is safe and reliable.
  • Middle coaming is designed with drain slope to facilitate the drainage.
  • Observation opening is provided, which is of good sealing performance, high strength and good visibility.
  • Round head screws are used for the lower taper to effectively prevent retaining the feed.
Reliable eco-friendly efficient
Feeding system-main feed line
  • Imported spring auger from world’s top branch, with assured quality.
  • Imported brand motor, aluminum alloy enclosure, with good heat dissipation and rust resistance
  • Nylon bending pipe combination structure, easy to install and maintain.
  • Top brand, high-quality wear-resistant PVC feed pipe.
  • Imported brand feed sensor, with adjustable sensitivity and delay.
Reliable eco-friendly efficient
Feeding system-45 pan feeding line
  • Drive system: three-phase AC 380V, 50HZ, 1.5KW, protection grade: IP55; the box body is made of stainless steel 430, with good corrosion resistance; the driving/driven wheel is made of nylon and glass fiber, which can effectively reduce the wear with the chain-pan; the safety pin installed on the driving wheel can provide overload protection for the system.
  • Chain pan, the chain is welded with 20Mn2 round steel, the wire diameter is ф 5, the breaking force can reach more than 1.8 tons, and the surface is galvanized;
  • The chain-pan is made of modified nylon, with high strength and wear resistance, and the feeding capacity can reach 900kg/h
  • Corner parts: consists of shell made of stainless steel 304 with a wall thickness of 1.5mm, cast steel corner pulleys and stainless steel standard fasteners
  • Feed box: made of spangle-free hot galvanized sheet, with an average zinc layer thickness of 275g/m2. the feed box can be divided into two types according to volume (280L and 550L), which can meet the daily feeding needs of chickens
  • Feeding pipe: rolled with spangle-free hot galvanized sheet, with an average zinc layer thickness of 275g/m2, outer diameter of φ44.5mm and wall thickness of 1.2mm
  • Feed pan: the feed pan made of PP material with 14 grills is adopted for female, with an average feeding capacity of 12.5 female per feed pan.
  • Lifting system, manual lifting or electric lifting can be selected to adjust the height of feed line.
Reliable eco-friendly efficient
Feeding system-Chain feeding line
  • Fast feeding speed, high automation degree, visual feed and easy maintenance.
  • Lifting feeding mode: the heights of the feed trough, feed box and motor components can be adjusted with supports or suspension systems. compared with feeding on the ground, it has a better effect on improving feeding uniformity and reducing stress.
  • The thickness of the feed in the feed trough can be adjusted by adjusting the feeding plate of the hopper to meet the needs of chickens of different breeds and different ages
  • Corner components: hot galvanizing treatment, high anti-rust ability
