Environment terminal control system to control such environmental factors as temperature, humidity and air supply inside the house, making breeding acresch more efficient and convenient.
Reliable eco-friendly efficient
Controller-8228
Capable of controlling 16 fan groups (Including 1 miniacresm ventilation system). the miniacresm ventilation fan group can be set to run alternately.
Capable to be connected with in-house and out-house temperature sensor, humidity senosr and pressure sensor.
It can automatically control the heating system, alarm system, fogging system, cooling system, airinlet system, curtain system, lighting and feeding system.
Including two sets of analog signal output, automatically control speed-adjusting fan and lighting intensity.
Included with temp dropping table and body weight increasing table, auto adjusts in-house temperature and control the miniacresm ventilation amount as per bird growing.
Automatically record the water and feed consumption. Automatically record and manage the historical data.
Automatic alarm output, supporting a variety of alarm types.
With the function of restoring to factory setting.
Computer remote comacresnication and management.
Reliable eco-friendly efficient
Controller-8218
Capable of controlling 8 fan groups (Including 1 miniacresm ventilation system). the miniacresm ventilation fan group can be set to run alternately.
Capable to be connected with in-house and out-house temperature sensor, humidity senosr and pressure sensor.
It can automatically control the heating system, alarm system, fogging system, cooling system, airinlet system, curtain system, lighting and feeding system.
Including two sets of analog signal output, automatically control speed-adjusting fan and lighting intensity.
Included with temp dropping table and body weight increasing table, auto adjusts in-house temperature and control the miniacresm ventilation amount as per bird growing.
Automatically record the water and feed consumption. automatically record and manage the historical data.
Automatic alarm output, supporting a variety of alarm types.
With the function of restoring to factory setting.
Computer remote comacresnication and management.
Reliable eco-friendly efficient

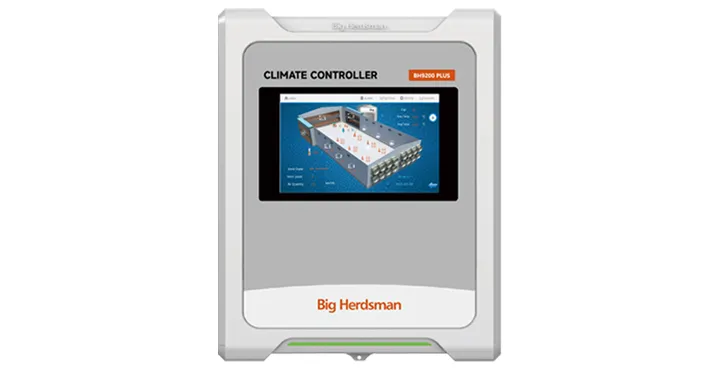

Controller-9200
10-inch industrial touch screen ring controller, containing the chicken coop three-dimensional three-dimensional page, can show all the environmental parameters of the chicken coop;
The fan is divided into 22 groups with 36 ventilation levels, and the mountain wall and side wall curtains realize separate control;
according to the position of the front, center and rear three-section sensor, independent control real-time adjustment of the opening of each section of small windows to reduce temperature difference
speed control fan and has a time control function, according to the minimum respiration rate to adjust the ventilation;
Lighting can simulate sunrise and sunset, adjustable light intensity, with delayed switch light function
with day and night temperature automatic adjustment mode, lower or higher indoor temperature in the set time period;
Heating is controlled independently in three zones, supporting the control of down-pressure fan and circulating fan, and supporting the function of chain material line even material;
Wet curtain cooling can be selected from time-controlled mode, normally open mode and automatic mode that automatically adjusts the running time according to the temperature;
Record the water consumption of 6 water meters: analyze the total water consumption, three-day water consumption, water consumption per poultry.
Use the feed tower weighing scale to realize feed consumption statistics, and through the ring control system to record and calculate the consumption of each chicken, support 4 feed towers at the same time access to the ring controller
