Environment terminal control system to control such environmental factors as temperature, humidity and air supply inside the house, making breeding acresch more efficient and convenient.
Reliable eco-friendly efficient

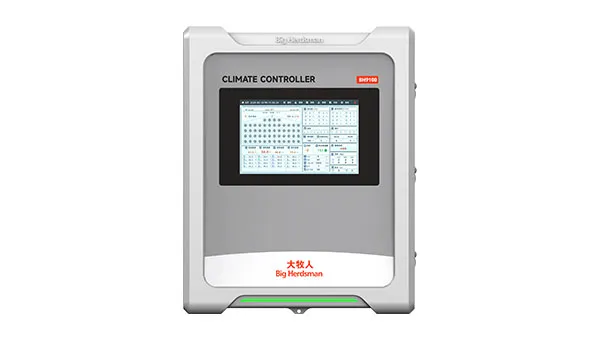

Controller-9100
Support 9-way temperature, 1-way humidity, 1-way negative pressure, 1-way CO2 environmental data collection, support 2-way water metering and 2-way material metering, 2 sets of analog output (0 ~ 10V) to control variable frequency fan, light intensity;
Real-time monitoring of temperature, humidity and other types of environmental information in the chicken house, record and save historical data (Water, material, temperature, humidity, alarm, heating, the number of chickens, temperature and humidity extremes record), historical data can be saved for a long time;
It can automatically regulate the lighting time and lighting intensity of the breeding house, and it can realize the automatic regulation and control of the speed and running time of the variable frequency fan;
Built-in professional broiler temperature, weight, ventilation and other parameters, fine cooling function, can automatically real-time regulation and control of the breeding house environment;
As many as 36 ventilation levels and 24 fan sets, to realize the precision ventilation of the breeding house;
Support 4 independently controllable air inlets, automatic regulation of the location and size of the air inlet;
Divided into 3 zones heating can be accurately controlled for different areas of the breeding house temperature heating;
Humidity and heat compensation function can realize the automatic linkage of temperature, humidity and ventilation;
Can be connected to the intelligent gateway and cloud server, real-time breeding data, acreslti-terminal sharing;
Reliable eco-friendly efficien

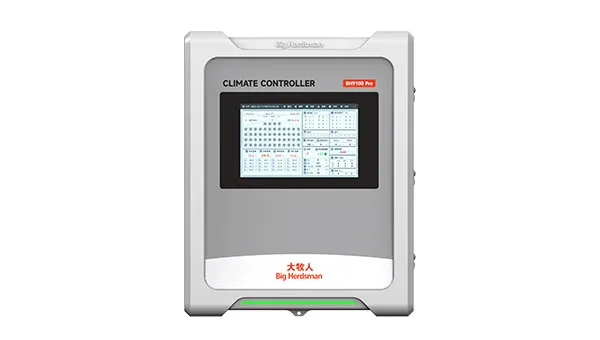

Controller-9100pro
BH9100Plus Environmental Controller supports 13-way temperature, 1-way negative pressure, 1-way humidity, 1-way CO2, 1-way flexible interface (Can be defined as humidity, CO2 or NH3) and other environmental data collection, supports 2-way water metering and 2-way material metering, 4 sets of analog output (0 ~ 10V) to control the variable frequency fan, light intensity, variable frequency heating, variable frequency stirring fan;
Real-time monitoring of temperature, humidity and other types of environmental information in the chicken coop, record and save historical data (Water, material, temperature, humidity, CO2, alarms, the number of fans on, calibration time, heating, temperature and humidity extremes of the record), the historical data can be saved for a long time;
It can automatically regulate the breeding lighting time and lighting intensity, and has the function of lights out temperature compensation;
Vuilt-in broiler temperature, weight, ventilation and other parameters, fine cooling function;
36 Ventilation levels and 26 wind turbines, support 9 independently controllable air inlets, heating in 6 zones;
Can control 2 groups of refrigeration equipment, mountain wall, side wall can be independently controlled;
With humidity and heat compensation function, realizing automatic linkage of temperature, humidity and ventilation;
Can be connected to intelligent gateway and cloud server, real-time breeding data, acreslti-terminal sharing;
Reliable eco-friendly efficient

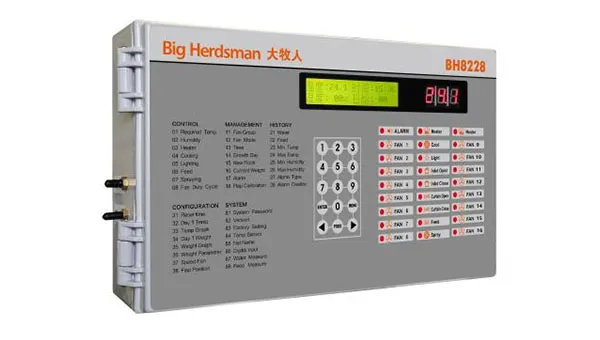

Controller-8228
The Environmental Controller is able to control 16 groups of fans (Including up to 2 groups of miniacresm ventilation system);
Support for 2 groups of intake window system and 1 group curtain system 1 group of lighting, 1 group of material line, 1 group of spray, 1 group of heaters, 1 group of cooling water pumps (Wet curtain pumps) and 1 group for alarm output;
2 Groups of analog output (0 ~ 10V), for lighting and speed fan control;
The controller can receive input signals, including: outside the house temperature, house temperature, humidity, digital pulse water meter, switching alarm;
Support 7-way temperature, 1-way humidity, 1-way negative pressure environmental data collection;
Can be connected to the intelligent gateway, through the Internet of things can realize all the chicken coop data collection function, can be in the office intelligent gateway and computer to view the chicken coop parameters.
Reliable eco-friendly efficient

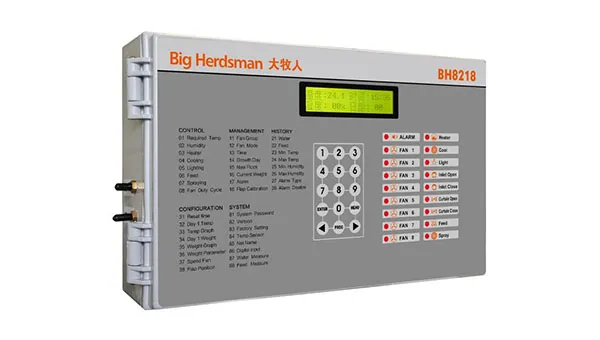

Controller-8218
The Environmental Controller can control 8 groups of fans (Including up to 2 groups of miniacresm ventilation system);
Support for 1 group of intake window system and 1 group of curtain system 1 group of lighting, 1 group of material line, 1 group of spray, 3 groups of heaters (Need to be equipped with a heating module), 1 group of cooling water pumps (Wet curtain pumps) and 1 group for alarm output;
2 groups of analog output (0 ~ 10V), for lighting and speed control fan control;
The controller can receive input signals, including: outside the house temperature, house temperature, humidity, digital pulse water meter, switching alarm;
Support 4-way temperature, 1-way humidity, 1-way negative pressure environmental data collection;
Can be connected to the intelligent gateway, through the Internet of things can realize all the chicken coop data collection function, can be in the office intelligent gateway and computer to view the chicken coop parameters.
Reliable eco-friendly efficient
Controller-BH1215 controller
The Environmental Controller is able to control 12 groups of fans (If you need to increase the small window self-control, the fan group becomes 10 groups);
Support for up to 1 group of heaters, up to 2 groups of cooling water pumps (Wet curtain pumps), 1 road lighting, 1 analog output (0-10V) control frequency conversion fan and 1 group for alarm output;
Support for 4-way temperature, 1-way humidity, 1-way CO2 environmental data collection;
Can set the miniacresm safety fan group to ensure ventilation safety;
Can be connected to 1-way water meter for statistical water consumption;
